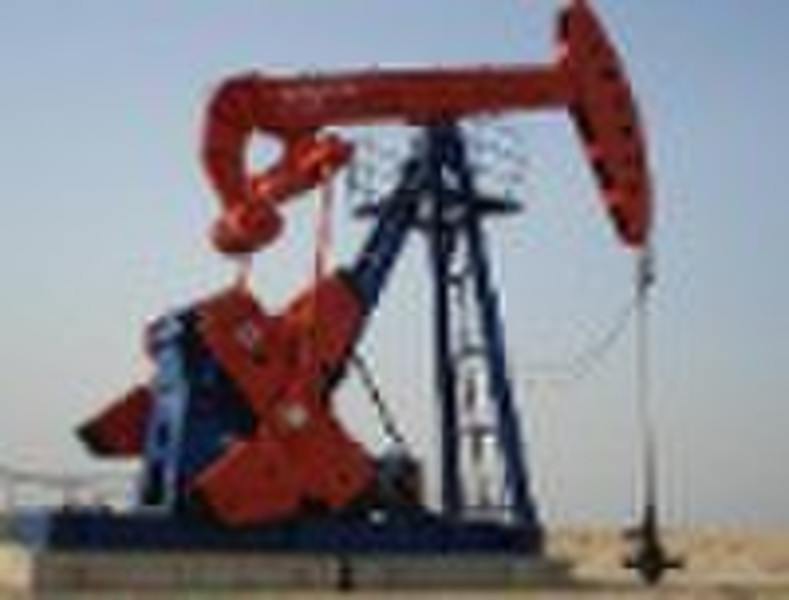

Compound Balanced Pumping Unit

Compound balanced pumping unit is added with the lower barbell rigid device on the base of the common walking beam pumping unit to make the reducer's torsion change slowly. This has not only achieved the energy saving effect through reducing the peak torsion, but also greatly improved the working condition of the pumping unit, increased the working capacity and prolonged the working life of equipment. Integrating all advantages of common walking beam pumping unit, it has reliable performance, simple structure and can be conveniently operated and repaired.Technical SpecificationsPumping Unit ModelMax.rated load(KN)Reducer torque(KN.m)Stroke length(m)Stroke frequency(min-1)Electric motor power(KW)Total weightCYJY10-4.2-53HB100534.2,3.6,35,6,73724,000CYJY10-4.2-53HFCYJY12-4.8-73HB120734.8,4.2,3.64,64526,300CYJY12-4.8-73HFCYJY14-5.4-89HB140895.4,4.5,3.64,5,65532,700CYJY16-5.4-105HB1601055.4,4.5,3.64,5,67534,100
