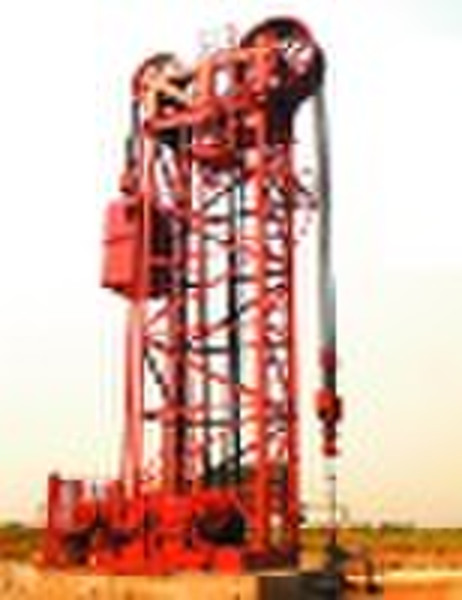

Reactive Commutation Intelligent Pumping Unit

Reactive change intelligent pumping unit is an integrated mechanical and electrical product with high performance and energy saving function. It adopts the non-energy consumption commutation technology, which can improve the mechanical efficiency by about 40% compared with the common walking beam pumping unit and save energy consumption by above 30%. Using intelligent simulation and digital mixed control, it can adjust oil pumping strokes according to the load condition to get economical and reasonable matching to various oil wells' operational parameters. Therefore, it has good adaptability. Adopting balanced opposed mode, it has precise balance. The pumping unit runs stably with small noise. It can actualize stepless parameter adjustment with easy and simple operation. It can also realize remote control.Technical specificationPumping unit modelMax. rated Load (KN)Reducer torque (KN.m)Stroke length (in)Stroke frequency (min-1)Electric motor power(KW)CYJWH12-5-20YD120200-5stepless adjustment0-3stepless adjustment30
